Shed Wiring Tips for Professionals: Key Installation Advice

If you are the proud owner of a shed on your acreage property and you find yourself frustrated with relying on extension leads from your home, it is crucial to think about having your shed properly wired. Whether your shed serves as a basic storage shed that requires just a light and a power point, or as a fully outfitted workshop where you operate welders and compressors, there is a systematic approach to follow. In NSW, the only legal and secure way to accomplish this is by hiring a licensed electrician who can ensure your installation meets all safety standards.

This comprehensive guide details the essential steps needed to supply power to your shed, elaborating on what your electrician will need to install, and providing an estimate of the costs likely to incur in the Mid North Coast region.

Start Your Shed Wiring Project by Planning the Cable Run

The most vital aspect of any shed wiring project is establishing a reliable power source that connects your main switchboard to your shed. Depending on the size of your property, this distance can range from 30 to over 100 metres. The longer the cable run, the larger the cable size required to effectively manage voltage drop, ensuring that your shed receives the necessary power efficiently and without interruption.

You essentially have two primary options for your cable run:

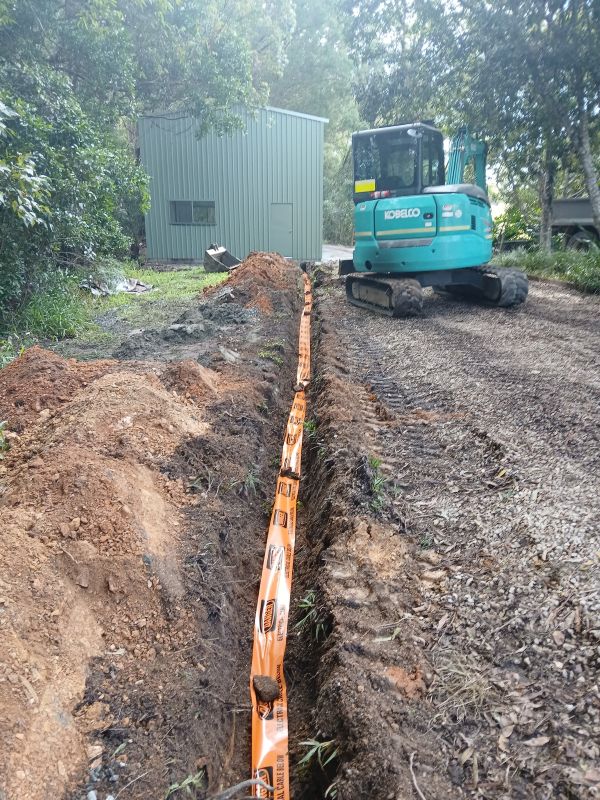

• Underground cable run — This is the most preferred and visually appealing option. A licensed electrician will install a heavy-duty cable through orange conduit, buried at least 500mm deep (or deeper if vehicles are expected to traverse the area). This method protects the cable from adverse weather conditions, animals, and falling branches, making it ideal for most acreage properties.
• Overhead cable run — Although this method is less common in modern installations, it may be necessary if you encounter solid rock or challenging terrain that complicates trenching. Overhead installations must adhere to specific clearance heights and support poles, which can considerably increase overall costs.

For the majority of properties in Bellingen, Coffs Harbour, and the Mid North Coast, the underground option remains the best choice. Your electrician in Bellingen can assess your site and recommend the most effective route for your installation, ensuring optimal safety and efficiency.

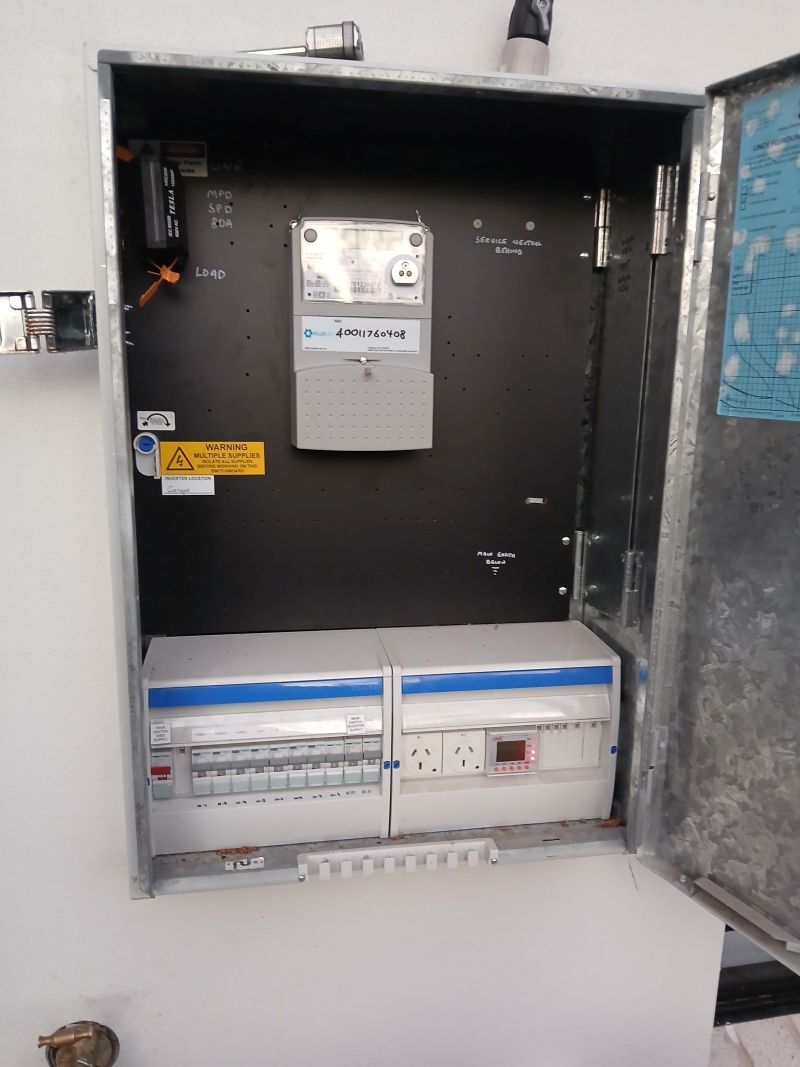

Implementing a Dedicated Sub-Board for Effective Shed Power Management

It is not enough to merely run a single cable to the shed and expect to plug in devices without additional infrastructure. Any shed receiving a proper power supply must be equipped with its own dedicated sub-board, also known as a distribution board. This setup operates as a mini switchboard within the shed, effectively managing all the electrical circuits and ensuring safe and efficient operation.

Your sub-board will typically consist of the following essential components:

• Main switch — This switch allows you to isolate all power to the shed independently from the main house, providing an additional layer of safety.
• RCDs (safety switches) — Under NSW electrical regulations, these devices are mandatory. They cut the power instantaneously in milliseconds if a fault occurs, which is critical in a shed environment that is often exposed to moisture, dust, and potential damage.
• Circuit breakers — These provide individual protection for each circuit in your shed, covering lighting, general power, and dedicated tool circuits, ensuring that you can operate multiple devices without the risk of overloading.

If your house's main switchboard is older, your electrician may also recommend upgrading the switchboard to accommodate the additional load directed to the shed, ensuring that all connections remain safe and efficient for your electrical needs.

What Essential Installations Are Needed Inside the Shed?

The specific installations that your electrician performs inside the shed will be customised to its intended use. Here’s a detailed breakdown of what these installations typically encompass, ensuring you have the right setup for your needs.

Enhancing a Basic Storage Shed with Essential Features

For a shed primarily used for storing tools, a ride-on mower, or general equipment, consider the following installations to maximise functionality:

• LED batten lights — Installing one or two ceiling-mounted LED battens can effectively illuminate the entire space. Your trusted electrician can provide advice on the most appropriate lighting layout based on the shed's dimensions and your specific storage requirements, ensuring that you can access your items easily.
• Two to four general power points — This quantity is sufficient for plugging in chargers, radios, or a drop saw whenever needed. Standard power points and switches will operate on a single circuit, ensuring versatility for various tools and devices you may need to use.
• External light — An outdoor-rated LED light above the door ensures that you can access the shed safely without fumbling in the dark, enhancing both safety and convenience for your daily tasks.

Designing a Powered Workshop Shed for Maximum Efficiency

If you frequently utilise power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements will extend beyond basic setups and require meticulous planning to ensure safety and functionality:

• Multiple circuits — Create separate circuits for lighting, general power, and specialised power tool outlets. This configuration prevents lights from flickering every time you activate a saw, ensuring a stable and productive working environment.
• Higher-rated power points — Install 15-amp or 20-amp outlets to effectively accommodate heavier tools, ensuring you have the correct power supply for your equipment and can work without interruptions.

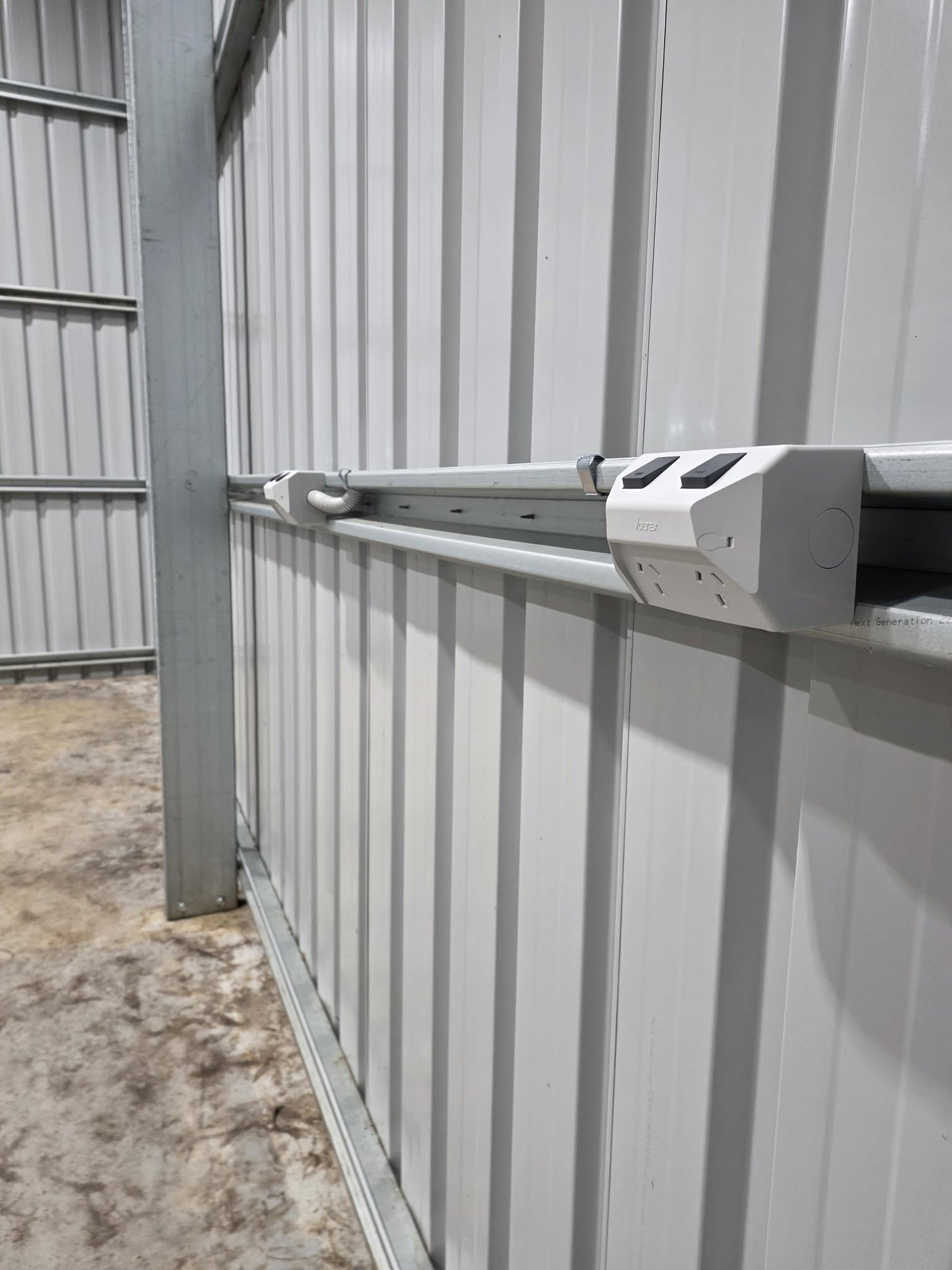

• Increased number of power points with optimal placement — Ensure outlets are positioned at bench height rather than only at skirting level, facilitating ease of use based on your workbench arrangement, allowing you to work efficiently.

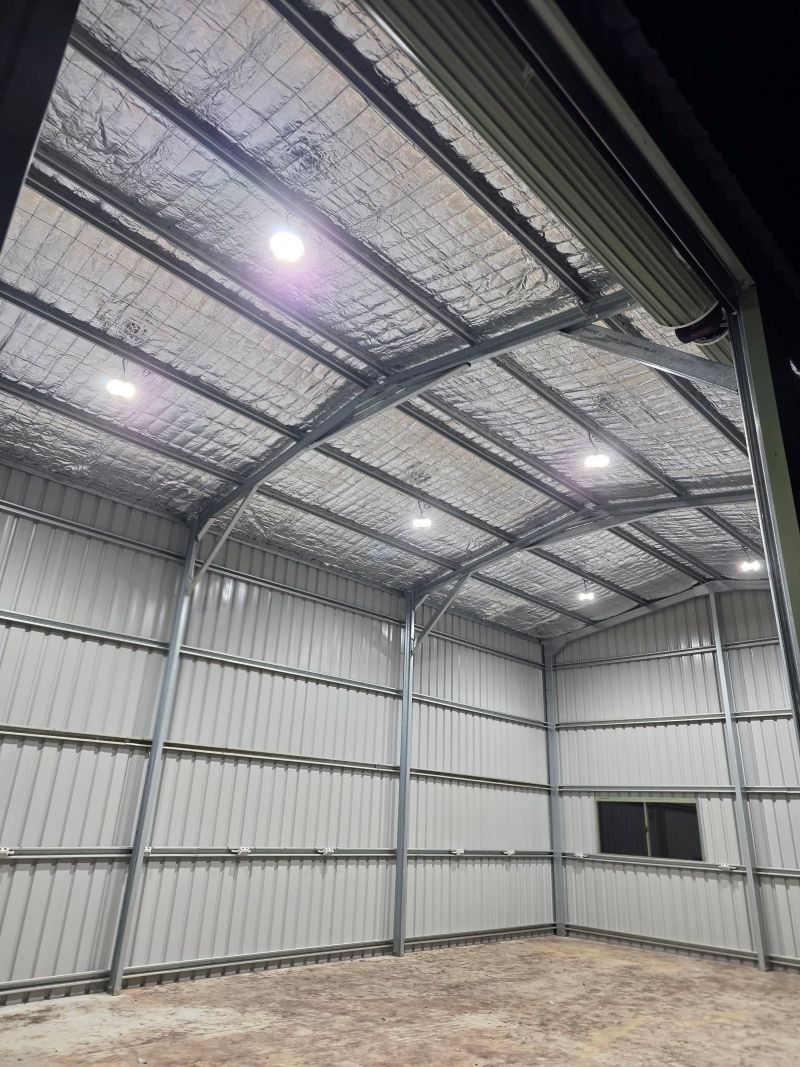

• Dedicated lighting — Provide brighter, targeted lighting over work areas, utilising LED high-bays for larger sheds to enhance visibility and safety during your projects.

For comprehensive guidance on establishing dedicated circuits for heavy tools, check out Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which delves into the specifics of effective wiring solutions tailored to your workshop needs.

Equipping a Full Workshop with Essential Three-Phase Power

If your activities involve heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not suffice. This is where three-phase power becomes crucial to meet your demands for efficiency and reliability.

Three-phase power provides a more stable and higher-capacity power supply, allowing you to operate multiple heavy-duty machines simultaneously without sacrificing performance. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast area, so plan accordingly).
• Install a three-phase sub-board in your shed, complete with the necessary breakers and RCDs to ensure safety and compliance with electrical regulations.
• Utilise heavier cabling — Be aware that three-phase cable runs can be more expensive, especially over extended distances, so careful planning is essential to manage costs effectively.
• Set up three-phase outlets — These heavy-duty sockets are specifically rated for the equipment you plan to operate, providing the necessary power for effective functioning and ensuring your tools perform optimally.

If you’re uncertain about whether you require three-phase power, read Do I Need Three-Phase Power on My Property? — this resource discusses when it is beneficial and when a properly configured single-phase system will suffice. We also provide full three-phase switchboard installation if that aligns with your needs for workshop functionality.

Protect Your Equipment with Essential Surge Protection for Your Shed

Properties located on the Mid North Coast frequently experience intense lightning storms. A direct or nearby strike can potentially damage everything within your shed, including tools, chargers, fridges, and any devices plugged in, resulting in costly repairs and replacement expenses.

Investing in a reliable surge protection device, installed within the sub-board, serves as inexpensive insurance against electrical surges. It absorbs voltage spikes before they can reach and damage your valuable equipment. For sheds housing costly tools or workshop setups, this measure proves invaluable and could save you significant costs in the long run, protecting your investments effectively.

If your property also utilises a generator for backup power, your electrician can install a generator changeover switch, ensuring that both the shed and the house can safely transition to generator power during outages, maintaining critical operations and comfort during emergencies.

What Are the Requirements for Council Approval and Compliance in NSW?

Here are several important considerations to keep in mind when planning your shed wiring project:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical work — including cabling, connections, and sub-board installation — must be handled by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion to ensure all work meets regulatory standards.
• Depth of underground cable must adhere to AS/NZS 3000 (the Wiring Rules), a standard your electrician will ensure compliance with during the installation process, safeguarding the integrity of the installation.
• If the shed is newly constructed, you may need development approval depending on your local council and the size of the shed. While the electrical work itself might not require a separate permit, the overall construction may necessitate one, so be sure to check with your local authorities.

Hack-It Electrical Solutions proudly holds the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete, ensuring peace of mind and adherence to local regulations with every project.

Understanding the Costs Involved in Shed Wiring on Acreage

Each shed presents unique challenges — including the distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions impacting trenching. However, here’s a realistic cost guide for the Mid North Coast area to help you budget for your project:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+

Be aware that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all increase costs. The most effective way to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and gain a clear understanding of your shed's intended use and electrical requirements to provide a tailored quote.

If you would like a straightforward quote tailored to your specific setup, feel free to call us at 0402 079 803 or contact us here.

Addressing Common Questions About Shed Wiring in NSW

Can I Wire My Shed Myself in NSW?

Absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This encompasses tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant dangers to you and your property. Your electrician will issue a Certificate of Compliance once the work has been completed, ensuring everything meets the required safety standards.

How Deep Must Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the route, the cable must be buried deeper, typically around 600mm or more. Your electrician will determine the appropriate depth for your specific property circumstances, ensuring compliance with safety regulations and best practices.

Do I Need a Separate Meter for My Shed?

In most instances, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed serves as a standalone dwelling or commercial premises — this consideration involves discussions with both the council and your energy distributor to ensure compliance with local regulations and standards.

How Long Does It Take to Wire a Shed on Acreage?

A basic shed wiring job, which includes trenching, cable installation, sub-board setup, lighting, and power points, typically takes between one to two days once the trench is prepared. If you're digging the trench yourself, your electrician can provide guidance on the precise route and depth before you begin. Keep in mind that three-phase jobs may take longer due to the need to arrange the supply connection with the distributor first and ensure all specifications are met.

Can I Run Power From the Shed to Other Buildings?

Yes, you can. However, each additional building will require its own appropriately rated cable run and may need its own sub-board depending on the load. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are adequate from the outset, rather than trying to add components later, which could lead to issues with power distribution and efficiency.

Ensure Your Shed Wiring is Done Right by Seeking Professional Help

If you are located on acreage near Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere across the Mid North Coast, Hack-It Electrical Solutions is here to assist you in setting up your shed correctly — whether it involves a basic lighting and power setup or a comprehensive three-phase workshop installation tailored to your specific needs and requirements.

Give us a call at 0402 079 803 or reach out through our website to schedule a site visit. We will survey your property, determine the optimal cable route, and provide you with a straightforward quote that meets your requirements and expectations.
