Solar Switchboard Upgrade for Chelmer’s Air Conditioning System

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade that accommodates a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—a three-phase upgrade was not necessary.

Why Choose Precision Electrical & Air for Your Switchboard Upgrade?

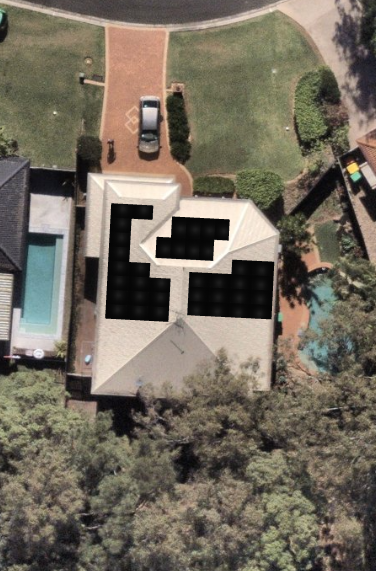

This homeowner in Chelmer undertook a significant renovation that included the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and complete blackout protection for the entire residence. Additionally, a new ducted air conditioning system was incorporated into the overarching plan. Before connecting these sophisticated systems, it was essential to assess and upgrade the existing switchboard to ensure it met modern compliance standards and could effectively manage the increased electrical loads these installations would introduce.

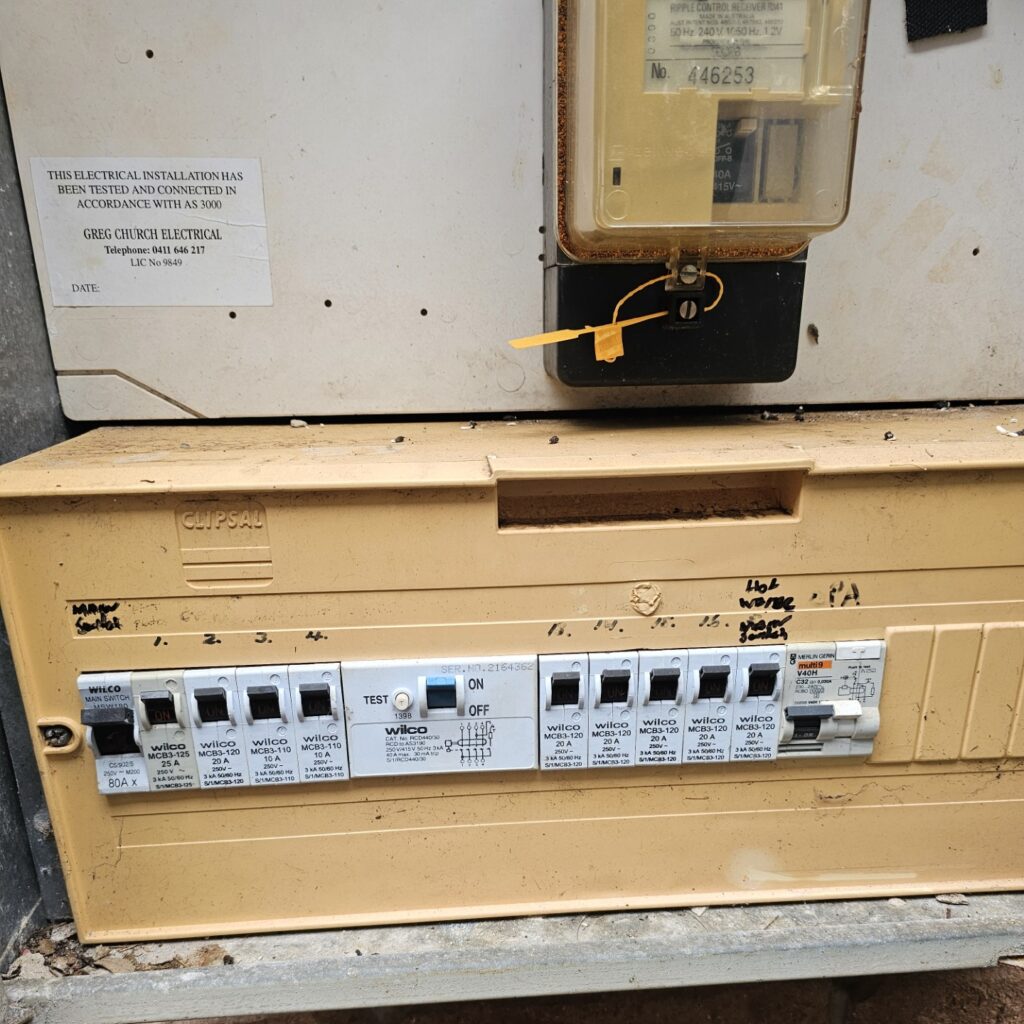

The original switchboard was outdated, featuring obsolete circuit breakers and only one Residual Current Device (RCD) that protected the entire property. It lacked the capacity to support solar energy integration and battery storage. Moreover, the circuit labeling was insufficient, rendering it non-compliant with contemporary standards governing energy generation systems. This lack of compliance represented a significant risk to the efficient operation of the newly upgraded systems.

Is a Three-Phase Upgrade Necessary for Your Electrical System?

In considering the specifications of a 17.86kW solar system combined with a 30kWh battery, it is a common misconception that a three-phase upgrade is a requirement. This misunderstanding can lead to significant financial burdens for homeowners, potentially incurring costs in the range of £3,500 to £6,000, as well as delays for approval from Energex for necessary network modifications.

Conducting a Comprehensive Initial Technical Assessment

Two essential factors played a critical role in determining the actual necessity of a three-phase upgrade. Firstly, the supply cable location for the residence was optimally situated near the street junction. This advantageous positioning allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, given that the solar and battery systems are designed specifically to reduce grid demand rather than increase it, there was no technical justification from the network's perspective for a three-phase upgrade. Moreover, the ducted air conditioning system was also verified to comply with the essential parameters for efficient single-phase operation.

As a result, the decision was made to maintain the single-phase configuration. The switchboard was upgraded to ensure it could safely and competently manage all new electrical loads without compromising safety or compliance with relevant regulatory standards.

Thorough Examination of All Installed Components for Enhanced Safety and Compliance

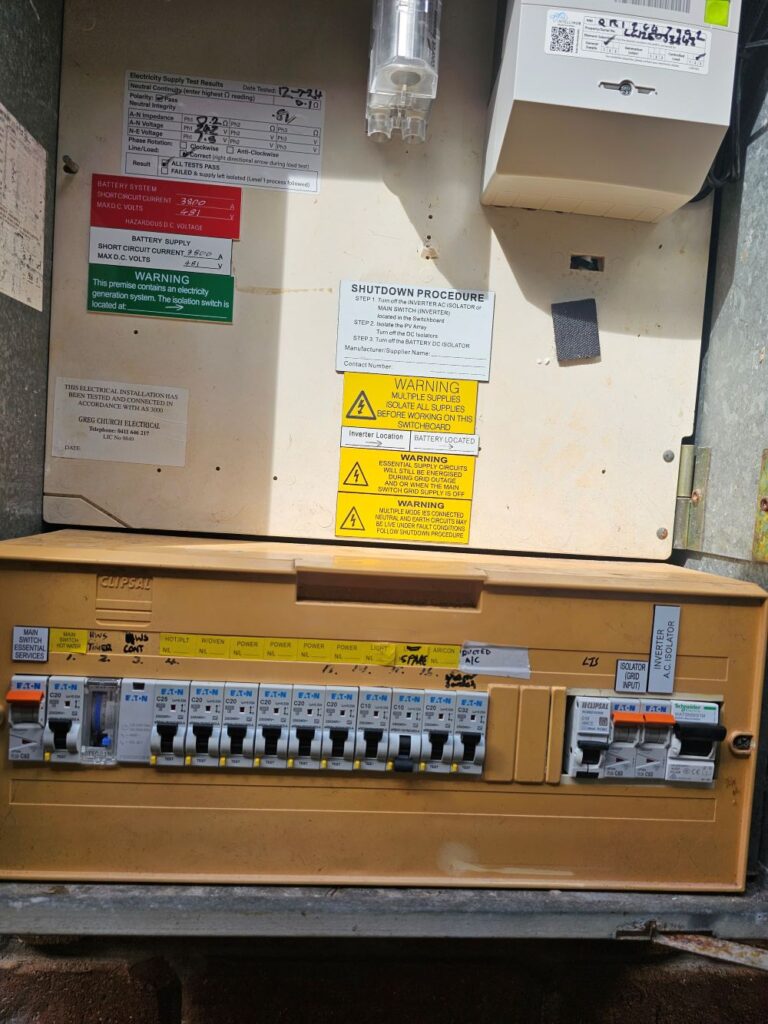

The existing switchboard underwent a complete dismantling and an extensive reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units sourced from Eaton, ensuring that each breaker was meticulously labelled for straightforward identification. The circuits were carefully segregated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits. This arrangement significantly enhanced safety and ensured compliance with current regulations.

A timer was integrated into the hot water service to guarantee its efficient operation during peak solar generation hours. This strategic addition markedly reduces reliance on the grid by optimising the use of the solar system's output throughout the day. Furthermore, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure its proper functionality and efficiency.

The upgraded switchboard was specifically designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, in addition to numerous supply warnings and a complete shutdown procedure. All electricity supply tests were successfully conducted and documented for the switchboard.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately set up for any future electrical service work that may be required at the property.

Homeowner Enjoys Benefits from a Successful Switchboard Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses associated with a three-phase upgrade that was not required for their specific circumstances.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure of Its Necessity?

While three-phase upgrades can be crucial in certain situations, they are not universally mandated. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your case, allow Precision Electrical & Air to perform a comprehensive analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property.

We assure you that no upselling will occur; you will receive an accurate evaluation tailored to your home's unique needs.

Your Frequently Asked Questions Addressed on Switchboard Upgrades

How do electricians determine the necessity of three-phase power for solar systems?

The assessment relies on two primary factors: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is adequate. However, if the voltage rise exceeds this threshold, three-phase power becomes essential to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable parameters.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not dictate the requirement for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, resulting in a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance stays within this limit to ascertain whether single-phase or three-phase power is suitable for your property.
