Victorian Tile Restoration Exposes Safety Hazards

Recognising Movement and Loose Grout in Victorian Tile Floors: Assessing Safety Hazards in Stapenhill

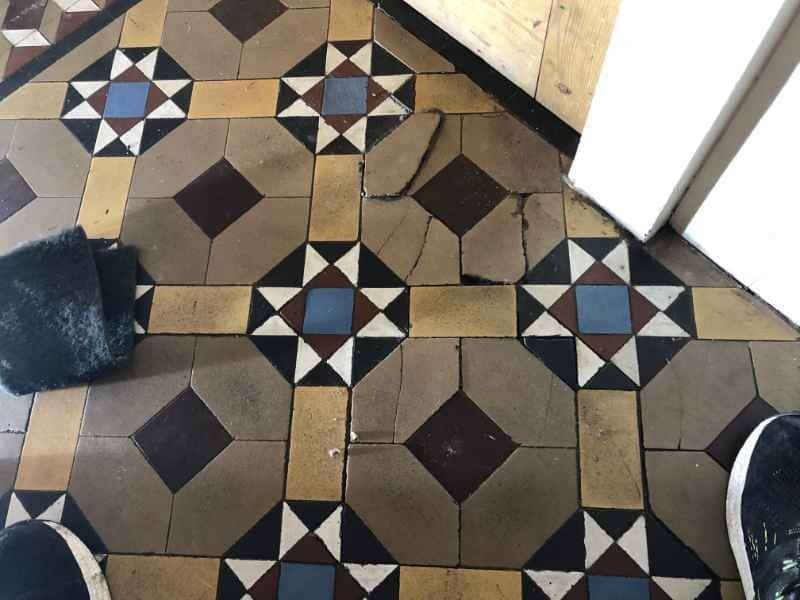

Noticing movement in your Victorian tile floor or detecting loose grout joints often indicates deeper issues than simple surface deterioration. The homeowner in this Stapenhill property was increasingly worried about the shifting across various sections of the entrance floor. Loose tiles, cracking joints, and uneven surfaces created a considerable trip hazard. While this floor was part of an original Edwardian entrance that still held much of its historic allure, decades of use, prior repairs, and ongoing movement had left it vulnerable to further deterioration.

Performing a Comprehensive Evaluation of Initial Floor Conditions

The entrance featured a captivating arrangement of Victorian geometric tiles, characteristic of properties from the era during Burton's industrial expansion. Over the years, heavy foot traffic had caused noticeable wear in the central walkway, while the edges remained relatively stable. Several tiles shifted when stepped on, and gaps emerged between adjoining sections due to ineffective earlier repairs. The homeowner's foremost concern was safety, especially in the entrance area that bore the brunt of daily footfall.

Loose grout was widespread throughout various parts of the floor. In several instances, earlier repair efforts had used harder materials that failed to adhere effectively to the surrounding tiles. Small fragments had broken away from the joints, leaving edges exposed to further wear. The uneven surface between adjacent tiles created an uncomfortable sensation underfoot and gave the floor a neglected look, despite regular cleaning efforts by the homeowners.

Throughout the hallway, the condition of the clay surface varied greatly. Some areas retained vibrant hues and clear patterns, while others exhibited darker stains where years of dirt had seeped into the naturally porous tile. Historic clay floors like this tend to absorb contaminants over time, which explains why routine cleaning often becomes less effective as the years go by. This resulted in a floor that appeared worn and inconsistent, despite the original geometric design remaining largely intact.

A more detailed examination revealed signs of multiple previous attempts to fix isolated issues rather than addressing the floor as a unified system. Different sections had been lifted and replaced at various times, leading to subtle discrepancies in level and alignment. Some joints contained deteriorated material that had become brittle and discoloured, while other repairs appeared significantly newer. These variations disrupted the visual harmony of the original design.

Although the entrance floor remained functional, the practical implications of its deterioration were increasingly hard to overlook. Tiles shifted slightly under pressure, grout continued to loosen, and the uneven surface complicated cleaning efforts. Dirt accumulated in open joints and around unstable areas, creating a cycle where the floor appeared progressively more worn. The homeowner realised that cosmetic cleaning would not effectively address these issues, making it essential to determine the full extent of the underlying problems.

The original pattern of the floor was one of the most attractive features of the property. Decorative borders and contrasting clay colours continued to define the layout, contributing to the entrance's period charm. Despite the movement and visible deterioration, most of the historic materials remained intact, adding to the frustration of the situation. The floor seemed neglected, yet much of the original structure still existed and was salvageable.

The project began with a thorough assessment of the floor's visible condition rather than immediate repair work. Loose sections, open joints, worn traffic paths, and areas of previous repairs were all meticulously documented. Identifying the extent of the deterioration provided clarity on the floor’s condition and laid the groundwork for subsequent actions.

What Is the Connection Between Uneven Victorian Tiles and Failed Repairs?

Uneven tiles and open joints often signify that prior repairs have inadequately addressed issues beneath the surface. In this Stapenhill hallway, the movement affected not just individual tiles but also the interconnected areas where the supporting structure had lost its stability. As the foundation weakened, tiles began to shift independently, causing nearby joints to gradually open.

Loose tiles seldom fail in isolation; the support beneath them has changed.

The visible symptoms clarified why dirt accumulated quickly around the affected areas. Open joints trapped contaminants, while movement permitted debris to infiltrate deeper into the gaps whenever the floor was walked on. Historic clay tiles are inherently absorbent, meaning that once dirt penetrates weakened joints, it becomes increasingly difficult to remove through standard cleaning methods. Similar issues, along with effective long-term solutions, are discussed in this guide to restoring Victorian tiles properly.

Why Is Stabilising Loose Victorian Tiles Essential Before Restoration?

Repeatedly cleaning a floor with loose tiles often postpones addressing the underlying issues and may make ongoing deterioration easier to ignore. Once the extent of the movement was assessed, the planned cleaning was halted to prioritise stabilising the unstable areas. Attempting restoration before stabilisation would only leave the root problem unresolved and potentially exacerbate the situation.

Cleaning alone would have temporarily improved the floor's appearance while leaving the underlying movement unchanged. Stabilisation first allowed the affected tiles to be carefully removed, unsuitable materials to be eliminated, and the supporting structure to be prepared before the original pieces were relaid in their correct positions. Damaged joints were repaired simultaneously, restoring continuity across the entire floor.

Only after resolving the structural issues could the subsequent restoration stages proceed in the appropriate order. This method protected the original tiles, minimised the likelihood of future movement, and ensured that the cleaning and finishing work produced lasting results, rather than a temporary fix.

Transforming a Safety Hazard into a Functional Entrance: The Advantages of Stable Victorian Tiles

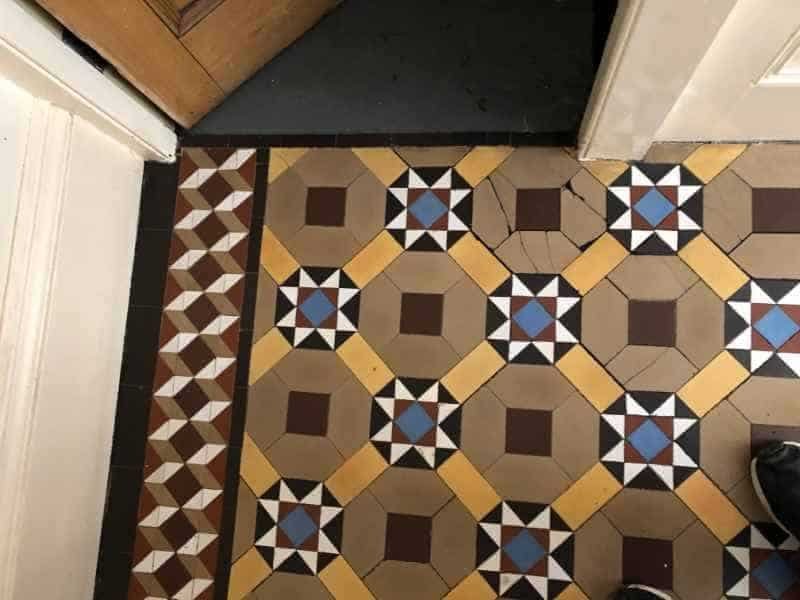

Homeowners frequently notice stability improvements following a successful Victorian tile restoration. After completing the repairs, the entrance floor no longer shifted under pressure, and the previously uneven areas felt secure underfoot. The removal of loose sections transformed the hallway from a source of concern into a reliable, functional entrance once more.

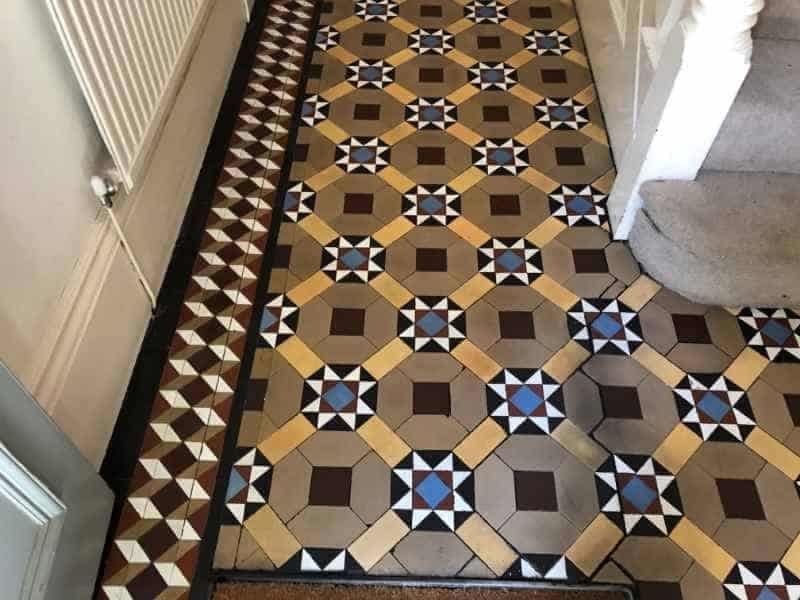

The visual enhancements were equally remarkable. Repaired joints resulted in a more uniform look, while thorough cleaning revealed colours and patterns that had been obscured by years of grime accumulation. A breathable protective treatment was applied to resist future staining while still allowing moisture to dissipate naturally through the floor structure.

A fully restored Victorian tile floor showcases the original fired matte surface with consistent colour and pattern. When a topical sealer is deemed appropriate, it can add a slight protective sheen without altering the character of the period floor. The completed entrance maintained its historic aesthetic while becoming safer, cleaner, and significantly easier to maintain.

What Are the Best Resources for Learning About Restoring Victorian Tile Floors to Avoid Past Mistakes?

Overlooking the underlying causes of tile movement often results in recurring problems. One of the most valuable lessons learned from this Stapenhill project was that visible symptoms seldom occur in isolation. Loose joints, uneven surfaces, and movement underfoot were all interrelated, and concentrating solely on aesthetics would never provide a lasting solution.

This project also underscored the importance of executing the work in the correct sequence. Stabilisation was the first step, followed by cleaning, joint repairs, and protective finishing. This systematic method preserved the original clay material while effectively addressing the homeowner’s concerns.

Readers interested in broader insights can explore the main Victorian tile cleaning resource, which delves into common issues, maintenance considerations, and restoration principles for historic clay floors. Understanding the causes of deterioration remains the most effective way to prevent repeating previous mistakes, assisting period entrances in maintaining their original character for many years.
