Three-Phase Power Solutions for Homes on the Mid North Coast

If you frequently encounter circuit breaker trips while using your welder, or if your lights dim whenever your air conditioning system activates, it is a strong indication that your current single-phase power supply may be inadequate. This issue is notably common in areas like Bellingen, Coffs Harbour, and the broader Mid North Coast, especially in rural settings and on large properties where substantial equipment is routinely in operation.

This detailed guide aims to equip you with vital information about three-phase power, the signs that suggest an upgrade may be essential, the steps necessary for enhancing your electrical system, and an overview of the potential costs involved in this transition. We strive to provide practical insights, avoiding technical jargon, to empower you to make a well-informed decision.

Discover the Advantages of Three-Phase Power: Key Differences from Single-Phase

In Australia, most households operate on single-phase power, akin to a single lane of electricity feeding into your home, which adequately powers lights, refrigerators, televisions, and various power tools without major complications.

In contrast, three-phase power functions like three lanes of electricity being available simultaneously. This setup delivers a higher volume of power more reliably and can support significantly larger electrical loads without the risk of voltage drops or system overload.

To clarify the differences:

• Single-phase: This system features one active wire supplying power, which is standard in most residential homes. It typically provides around 230V and sufficiently meets everyday household needs.
• Three-phase: This configuration comprises three active wires distributing power in a rotating manner. It offers approximately 400V and can handle much larger equipment without strain or the risk of overload.

Many residential areas across the Mid North Coast are wired for single-phase power. three-phase power may already be accessible on your street; it simply has not been connected to your home yet. This is an important factor to consider when thinking about an upgrade.

Recognising the Indicators That Your Single-Phase Power Supply Is Inadequate

Often, you may not realise the need for three-phase power until you begin experiencing issues. Here are some common warning signs frequently encountered in properties around Bellingen, Nambucca Heads, Urunga, and throughout the Mid North Coast:

• Lights dimming or flickering during equipment startup: If your lights dim whenever a compressor, pump, or large motor starts, this indicates that your single-phase supply cannot handle the startup current.
• Circuit breakers tripping frequently: This is especially common when multiple heavy appliances are in operation at the same time. While upgrading the switchboard may provide a temporary fix, ongoing overloading signals that transitioning to three-phase power is the best long-term solution.
• Inability to use more than one heavy tool simultaneously: If starting the welder necessitates turning off the compressor, it is clear that your power supply has reached its limit.
• Voltage drops affecting equipment performance: If motors run at reduced speeds, tools underperform, or sensitive electronics malfunction, low voltage can cause lasting damage to your equipment.
• Notification from your supplier that new equipment requires three-phase power: Many larger workshop machines, commercial air conditioning units, and irrigation pumps are specifically designed for three-phase power and will not operate on a single-phase supply.

If you identify two or more of these issues, it is advisable to seek a thorough evaluation from a licensed electrician before investing in temporary fixes.

Typical Situations That Necessitate Three-Phase Power on the Mid North Coast

The Mid North Coast encompasses a variety of rural properties, lifestyle blocks, farms, and semi-rural homes, with many individuals undertaking significant work on their land. Below are common setups that require three-phase power:

High-Power Equipment for Workshops and Sheds

Large machinery in workshops demands significant power. If you operate any of the following, three-phase power is often the most effective solution:

• MIG/TIG welders (larger models): Larger welding machines typically require three-phase power.
• Lathes and milling machines: Particularly those intended for industrial use.
• Large air compressors: Models exceeding approximately 5HP usually necessitate three-phase power.
• CNC routers and plasma cutters: Commonly used in fabrication and woodworking workshops.

If you are establishing a serious workshop, consider consulting our guide on Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment for detailed information on creating an effective electrical layout.

Irrigation Systems and Water Pump Configurations

Bore pumps and extensive irrigation systems on farms and larger properties frequently require three-phase motors. Three-phase pumps operate more efficiently, have a longer lifespan, and can manage higher flow rates without the startup surge challenges faced by single-phase motors, particularly over long rural supply lines.

Pottery Studios and Kiln Operations

The hinterland regions surrounding Bellingen and Dorrigo boast a vibrant artistic community, and we have equipped numerous pottery studios. Larger ceramic kilns, especially those exceeding approximately 8kW, almost invariably require three-phase power to effectively achieve and maintain the necessary firing temperatures.

High-Power Air Conditioning Systems

Ducted air conditioning systems rated above approximately 15kW typically necessitate a three-phase supply. In larger properties — particularly those with multiple living spaces or separate buildings — single-phase power simply cannot meet demand. Implementing surge protection is also advisable when operating expensive HVAC systems.

Powering Auxiliary Buildings and Sheds

If you are extending power to a large shed, studio, or granny flat, and are already nearing the limits of your single-phase supply at home, this project often acts as a catalyst for a three-phase upgrade. Our guide on Shed Wiring on Acreage offers an in-depth look at the wiring considerations involved.

Understanding the Process to Transition to Three-Phase Power

Transitioning from single-phase to three-phase power is not a straightforward task that can be completed in a weekend. The process involves several stages, some of which require coordination with your electricity distributor, which is Essential Energy on the Mid North Coast.

Here is a breakdown of the typical steps:

Step 1: Conducting an Assessment and Providing a Quote

A licensed electrician will evaluate your existing setup, including your switchboard, mains cable, meter location, and your anticipated electrical usage. This assessment identifies the scope of work required and determines if any upgrades to your current wiring are necessary.

Step 2: Submitting an Application to Essential Energy

Your electrician will file an application with Essential Energy (the network distributor for the Mid North Coast) to request a three-phase power connection for your property. Essential Energy must confirm that three-phase power is available on your street or supply line and will outline any necessary network-side work that needs to be completed.

• If three-phase is already accessible on your street: The process is generally more straightforward and quicker.

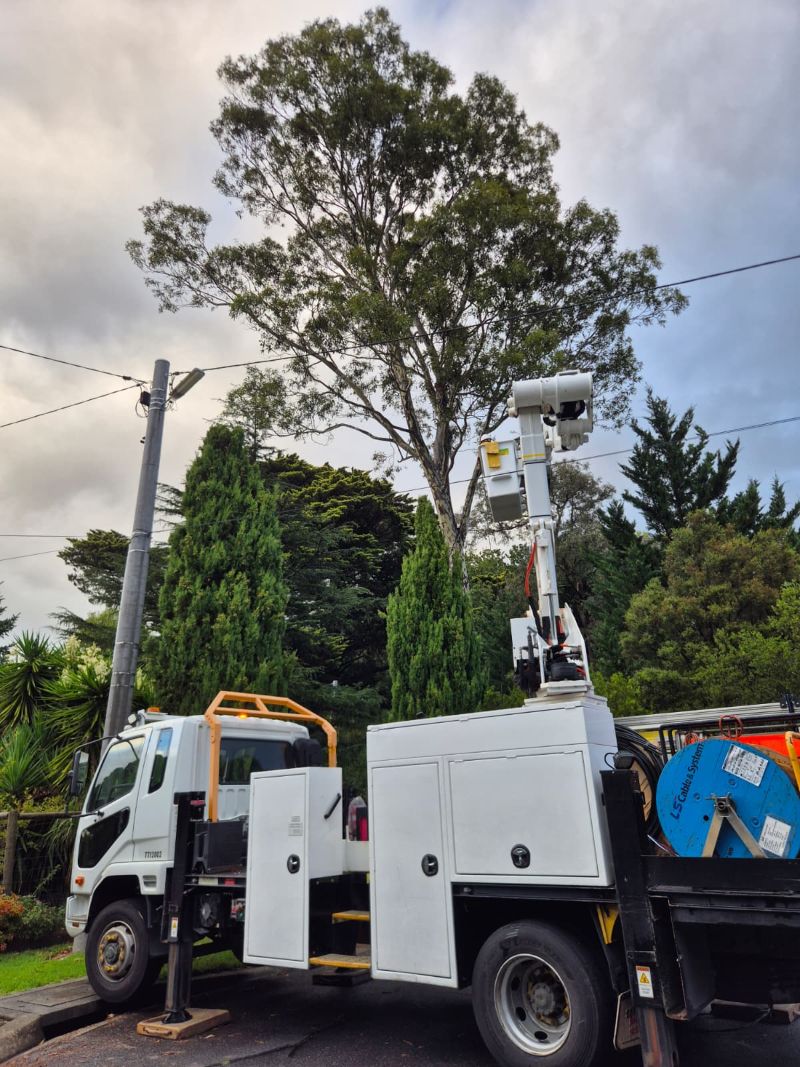

• If three-phase needs to be extended to your area: This process is more time-consuming and costly, as Essential Energy may need to install new lines or upgrade a transformer.

Step 3: Carrying Out Electrical Work at Your Property

Once Essential Energy grants approval, your electrician will perform the required work on your property:

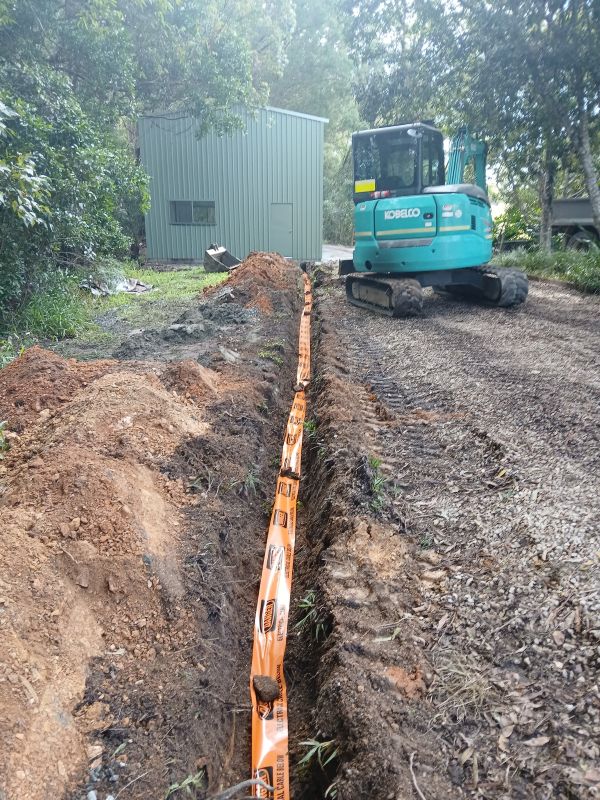

• Installation of new mains cabling: This involves running new cabling from the street supply to your meter and switchboard, as the existing single-phase mains cable is unsuitable for three-phase connections.
• Meter replacement: Essential Energy will either replace your existing meter with a three-phase meter, or your electrician will coordinate this with them.

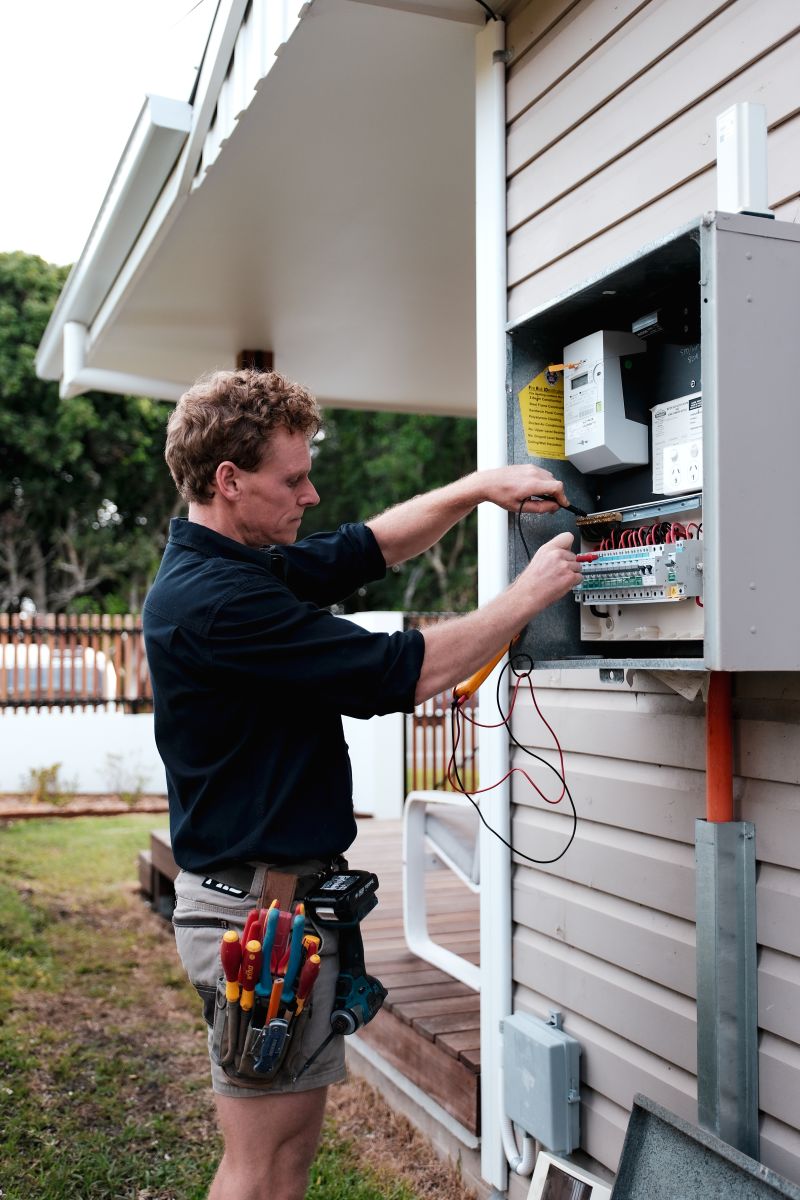

• Three-phase switchboard installation: Your old single-phase switchboard will either be replaced or upgraded to distribute three-phase power to the necessary circuits.
• Circuit wiring: New dedicated circuits will be installed for equipment requiring three-phase power, while your existing single-phase circuits will continue to function as they are.

If your property also requires new power points or switches in the workshop or shed, these additions are typically installed simultaneously to optimise labour costs.

Step 4: Final Inspection and Activation of Your New Power Supply

All completed work will undergo a thorough inspection and certification. Following this, Essential Energy will energise the new three-phase connection. Your electrician will conduct a final check to ensure that everything operates correctly.

Understanding the Timeline for Your Three-Phase Power Upgrade

The duration of the upgrade process can vary significantly depending on factors related to Essential Energy:

• If three-phase is available on your street: The entire process (application, approval, electrical work, energisation) generally takes between 4 to 8 weeks.
• If Essential Energy needs to extend the network: Expect the timeline to range from 8 to 16 weeks or even longer, depending on the extent of their work.

The actual electrical work on your property typically requires between 1 to 3 days. The majority of the waiting period is often associated with Essential Energy‘s application and connection process.

Assessing the Financial Implications of a Three-Phase Upgrade

The costs linked to upgrading to three-phase power can vary based on the complexity of the job, the distance from the street supply to your switchboard, and the fees imposed by Essential Energy for the network connection.

As a general estimate:

• Straightforward upgrade (three-phase already available on the street, short mains run): Starting from $8,000, which includes switchboard upgrades, new mains, and Essential Energy fees.
• More complex upgrade (longer mains run, extension needed from Essential Energy network, significant switchboard modifications): Starting from $15,000 and potentially much higher if Essential Energy needs to enhance existing infrastructure.

The connection fees from Essential Energy are separate from the costs charged by your electrician, and these fees vary based on location and the extent of work required on the network side. Your electrician should provide a detailed breakdown of both costs before you proceed.

Consider whether you might benefit from installing a generator changeover switch as part of the upgrade, particularly in rural properties where power outages are more frequent.

Legal Obligation: All Electrical Work Must Be Performed by a Licensed Electrician in NSW

This requirement is non-negotiable. In New South Wales, all electrical work, including three-phase upgrades, private power pole maintenance, switchboard installations, and circuit wiring, must be conducted by a licensed electrical contractor. Engaging in DIY electrical work is illegal and poses significant risks.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C. We perform three-phase upgrades across the Mid North Coast, from Bellingen and Dorrigo to Coffs Harbour, Sawtell, Woolgoolga, Nambucca Heads, and all areas in between.

Your Questions Answered: Common Inquiries

Can I Operate Three-Phase Equipment on a Single-Phase Power Supply?

In certain cases, yes — this can be achieved by using a phase converter or a variable frequency drive (VFD). these solutions can increase costs, may reduce equipment performance, and might not be suitable for all applications. For those with multiple three-phase equipment items, upgrading to a three-phase supply is usually the more sensible long-term investment.

How Can I Check for the Availability of Three-Phase Power on My Street?

Your electrician can verify this information with Essential Energy during the assessment process. In many urban and semi-rural areas on the Mid North Coast, three-phase power is already present along the street; it simply has not yet been connected to your property.

Will Upgrading to Three-Phase Power Increase My Property's Value?

It can, particularly for rural and semi-rural properties. Three-phase power serves as a significant selling point for potential buyers intending to operate workshops, farms, or home businesses, as it indicates that the property's electrical infrastructure is robust and capable of supporting more than just standard residential needs.

Is Three-Phase Power Necessary for Solar Panel Installations?

Standard residential solar systems generally function on single-phase power. Larger commercial-grade solar installations (typically exceeding 15kW) do require three-phase power. If you are planning a substantial solar setup alongside other significant electrical loads, considering three-phase power as part of your overall energy strategy is advisable.

What Are the Ongoing Cost Differences Between Single-Phase and Three-Phase Power?

Your electricity rates will not change simply because you switch to three-phase power. You will pay for your actual usage, just as you did before. The daily supply charge may be slightly higher under a three-phase tariff, but the difference is minimal. The real cost benefits come from the enhanced efficiency and reliability of your equipment.

Ready to Determine If Three-Phase Power Is the Right Choice for Your Property?

We are level 2 electricians prepared to assist you in overcoming your power limitations. If you are planning a workshop, shed, or equipment upgrade that requires substantial power, contact us. We will evaluate your current setup, confirm the availability of three-phase power with Essential Energy, and provide you with a clear assessment of what is involved and the associated costs.
